Wom165_vMS

ARCHIVE

Wom165_vMS provides accurate bass response in compact vented enclosure and extended frequency response.

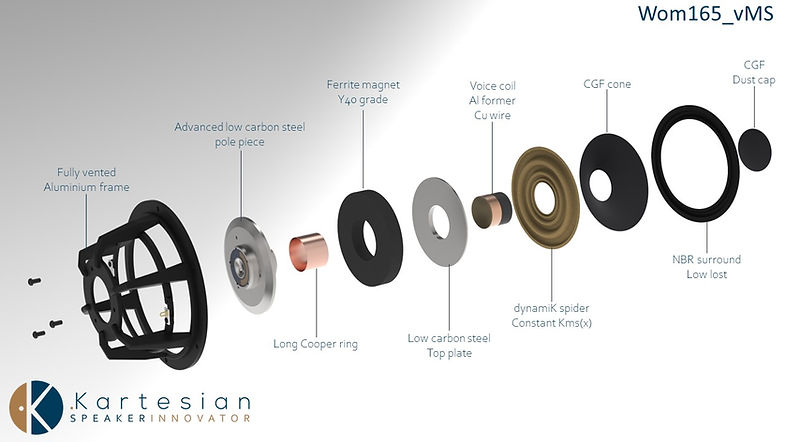

The suspension uses the .dynamiK technology to keep excursion control in any situation.
The motor structure, engineered with FEA, uses cooper ring for very low THD.
The cone is made with our proprietary CGF material, 10 times more rigid than usual carbon fiber.

Add to cart
Add B-stock to cart

XXX,XX €

XXX,XX €

VAT Excluded

Resonance frequency

FS

39

Hz

Linear response (-3dB)

45 - 2500

Hz

Sensitivity

SPL

90

dB/2.8V/1m

Nominal impedence

8

Ω

Pure linear excursion

Xmax

+/- 4.5

mm

DC resistance

Re

6.2

Ω

Mechanical quality factor

Qms

2.8

Total quality factor

Qts

0.273

Force factor

Bl

8.8

N/A

Equivalent volume

VAS

22.15

L

Moving mass

Mms

14.3

g

Effective area

Sd

125

cm2
