Wom300_vDIY

Crédit photo: .Kartesian company

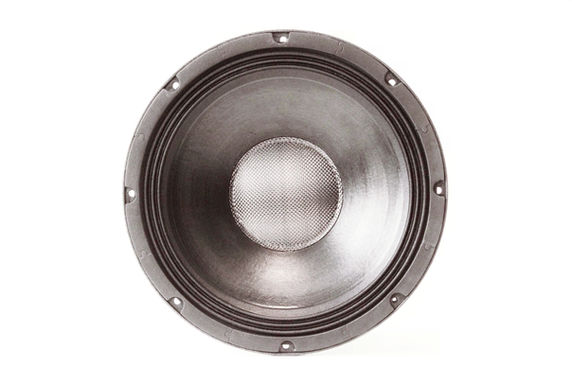

Wom300_vDIY is a 12inch woofer, dedicated to passionate and DIY community.



The motor structure is based on 170mm diameter Fe magnet, it uses 2 Aluminum rings and advanced pole pieces geometry to get symmetric and linear force factor and inductance.



Membrane has been engineered with FEA. It is made of pressed paper with handmade in France treatment, and Carbone fiber dust cap.



The typical use case is a 2 ways high-efficiency system using compression driver for upper frequency. We suggest to associate the Wom300_vDIY with the Cmp50_vPA-S (crossover point around 1500Hz) or with Cmp65_vPA (crossover point around 900Hz).

T&S parameters

Fs : 37Hz

SPL : 93dB /2,8V /1m

Re :5.36Ω

Qms : 7.2%

Qts : 0.36%

Bl : 15.62N/A

VAS : 91L

Mms : 75g

Sd : 511cm²

Frequency responses

On IEC baffle

Pink noise

Distance: 1m

Signal input: 2,83V

Curve below 120Hz is simulated in 90L vented enclosure,

Fc = 34Hz



Dash curves: 30° & 60°

Smoothing: 1/12 Octave

Impedance measured in free air

Wom300_vDIY_Official rep Fr + Z.PNG

Mechanical drawing

Unit: [mm]

Crédit photo: .Kartesian company

Advanced design

Konstant BI(X).png
Konstant Le(X).png

Pressed and treated paper Carbon fiber dust cap

Triple rolls, Damped fabric Polyester / Cotton spider

Ø65mm, Cooper wire Glass fiber former

Y40 grade Fe magnet Demodulated by Aluminum rings Optimized and vented pole pieces

Fully opened Aluminum frame

Wom300_vDIY_Official drawing.PNG

Advanced measurements

Logo KLIPPEL RGB_transparent.png
Note: We improve continually our products. No contractual data.
